The temperature and pressure relief valve (T&P valve) is your water heater’s most critical safety feature. When installed incorrectly, it can lead to catastrophic failure – even explosions in extreme cases!
Mistake #1: Improper discharge tube installation. The discharge tube must be the same diameter as the valve outlet (typically ¾ inch) and made of appropriate materials. PVC is never acceptable as it can melt under extreme temperatures!
Mistake #2: Incorrect valve positioning. The valve must be installed within 6 inches of the top of the tank and never blocked or plugged. I’ve seen homeowners tape or cap these valves because of minor dripping – an incredibly dangerous practice.
Water heater installation leaks often begin with improper connections. These seemingly minor mistakes can lead to major water damage and premature tank failure.
When two different metals meet in plumbing (like copper pipes connected directly to steel tank fittings), galvanic corrosion occurs. This electrochemical reaction rapidly deteriorates connections, leading to leaks within months rather than years.
Always use dielectric unions when connecting dissimilar metals. These special fittings contain an insulating material that prevents the electrochemical reaction. They cost just a few dollars but can extend your water heater’s life by years!
One mistake I see repeatedly is homeowners soldering copper pipes too close to the water heater. The intense heat can melt internal plastic components and void your warranty instantly!
Where and how you position your water heater can determine whether it serves you reliably for years or becomes a costly disaster. Proper drainage and placement are essential for both safety and efficiency.
Every water heater should sit in a drainage pan that’s connected to a proper drain. This simple precaution can prevent thousands in water damage when (not if) your tank eventually leaks.
The drainage pan should be at least 2 inches larger in diameter than your water heater and have a minimum 1-inch lip. The drain line should be at least ¾ inch in diameter and positioned to drain by gravity – never relying on a pump that could fail during a power outage.
Proper insulation isn’t just about energy efficiency – it’s about preventing costly damage and ensuring your water heater operates safely for years to come.

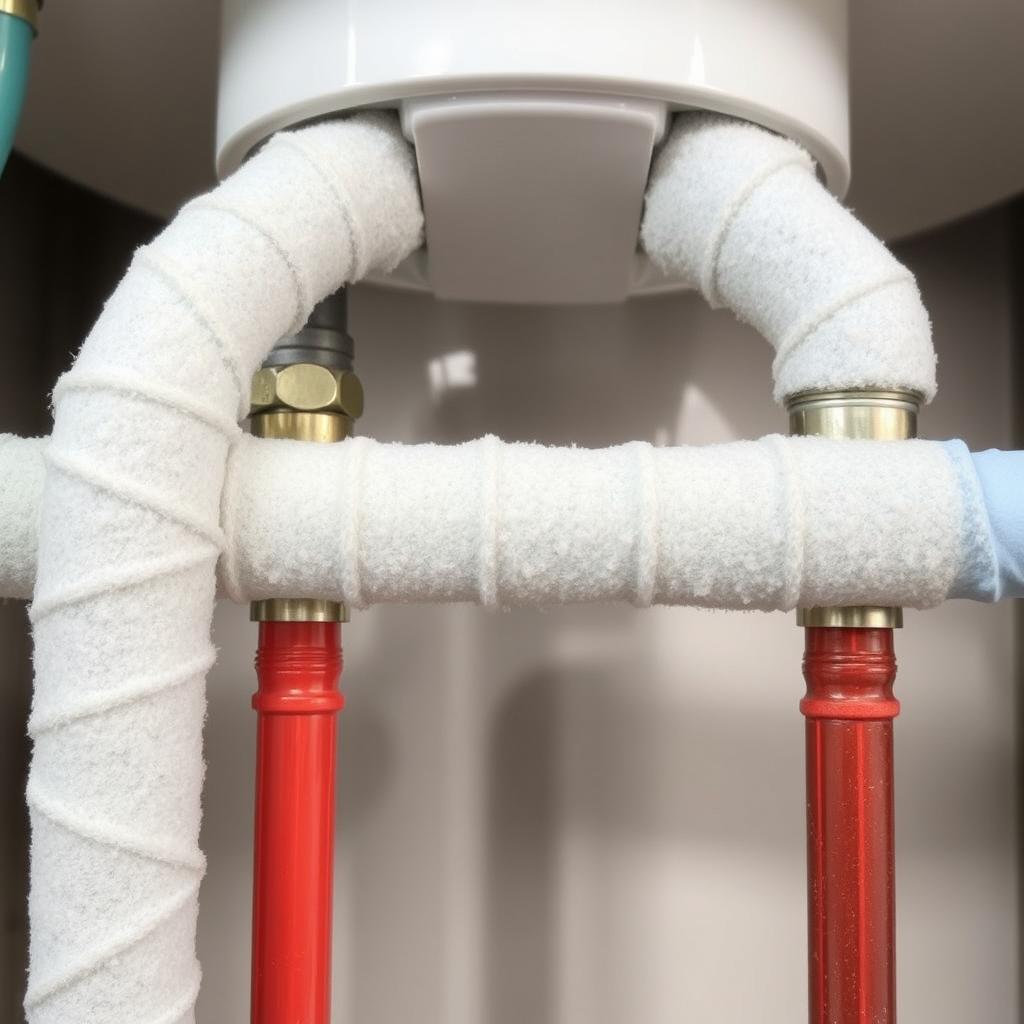

Insulating the first 6 feet of both hot and cold water pipes connected to your water heater can reduce heat loss by up to 45% and prevent condensation issues. This simple step costs less than $20 but saves hundreds in energy costs over the heater’s lifetime.
Use proper foam pipe insulation rated for your pipe temperature – not generic foam or fiberglass that can deteriorate. Secure with zip ties or aluminum tape, not standard electrical tape that will eventually fail.
For older water heaters (pre-2015), adding an insulation blanket can improve efficiency by 7-16%. However, modern units often have built-in insulation that makes external blankets unnecessary or even problematic.
Warning: Never insulate over the temperature and pressure relief valve, control panels, or burner access panels. Doing so creates serious safety hazards!
Installing a water heater that’s too large or too small for your household needs creates a cascade of problems, from wasted energy to dangerous pressure fluctuations.
For a typical family of four, a 50-gallon tank usually provides adequate hot water. However, proper sizing depends on peak hour demand, not just family size.
Calculate your household’s peak hour demand by adding up the hot water used during your busiest hour (typically mornings). A shower uses approximately 10 gallons, a dishwasher 6 gallons, and a washing machine 7 gallons.
The First Hour Rating (FHR) on new water heaters tells you how many gallons of hot water the unit can deliver in an hour. Choose a water heater with an FHR that matches or slightly exceeds your peak hour demand.
While many homeowners successfully install water heaters themselves, certain situations demand professional expertise. Understanding when to DIY and when to call a pro can save you from dangerous mistakes.
While saving on installation costs is tempting, consider the potential expenses of mistakes: water damage remediation averages $2,700, emergency plumbing repairs can exceed $500, and improper installations often void manufacturer warranties worth hundreds of dollars.
“The most expensive water heater installation is the one you have to do twice. I’ve seen too many homeowners spend thousands fixing DIY mistakes that could have been avoided with proper installation the first time.”
Water heater installation mistakes can be costly, dangerous, and frustrating. By understanding the common pitfalls – from pressure relief valve errors to sizing issues – you’re better equipped to either tackle the project yourself or have informed conversations with professionals.
Remember that a properly installed water heater should provide reliable service for 8-12 years. Taking the time to do it right, whether DIY or professional, is an investment in your home’s safety, efficiency, and your family’s comfort.
Whether you choose to install your water heater yourself or hire a professional, understanding these common water heater installation mistakes will help ensure you get years of trouble-free service from this essential home appliance!
